Name: EUCHNER Safety switch STM2A-242B024-M; 095399
Brand: EUCHNER
SKU: 095399
Availability: OutOfStock

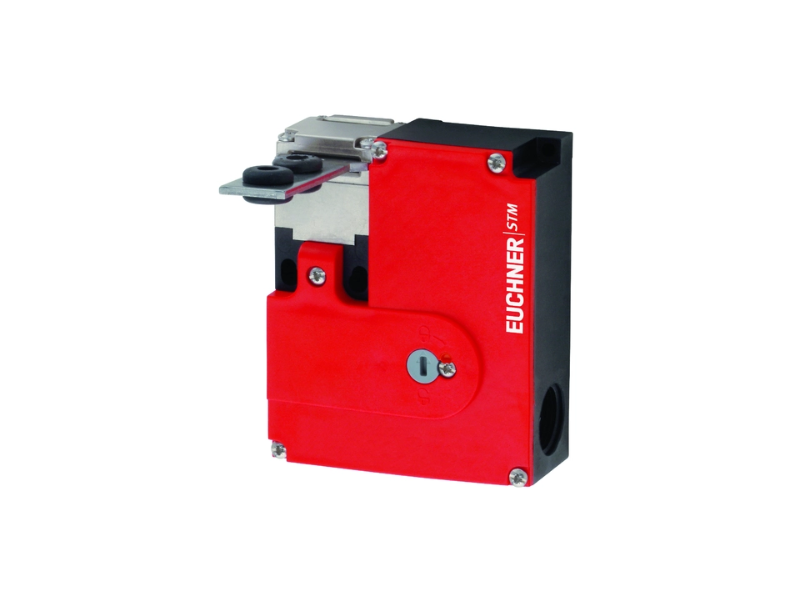

EUCHNER Safety switch STM2A-242B024-M; 095399

Safety switch STM Actuating head made of metal Auxiliary release on the front...

Brand: EUCHNER
Product Code: 095399
Availability: Check availability

Price on request

Safety switch STM

Power consumption	6 W
Connection cross section	0.34 ... 1.5 mm²
Rated insulation voltage Ui	250 V
Rated impulse withstand voltage Uimp	2.5 kV
Utilization category
DC-13	4 A 24 V
AC-15	4 A 230 V
Short circuit protection according to IEC 60269-1	4A gG
Solenoid operating voltage
AC/DC	24 V -15% ... +10%
Solenoid duty cycle	100 %
Switching voltage
min. at 10 mA	12 V
Switching current
min. at 24 V	1 mA
thermal rated current Ith	4 A

Approach speed	max. 20 m/min
Approach direction	B
Connection type
1 x	M20 x 1.5
Number of door position NO contacts	1
Number of door position positively driven contacts	1
Number of guard lock monitoring positively driven contacts	1
Extraction force	30 N
Actuation frequency	max. 1200 1/h
Actuating force	35 N
Installation orientation	any
Insertion depth	24.5 mm
Mechanical life	2 x 10⁶
Retention force	20 N
Switching principle	Slow-action switching contact
Degree of protection	IP67
Ambient temperature	-20 ... +55 °C
Material
Housing	Reinforced thermoplastic
Contact	Silver alloy, gold flashed
Locking force Fmax	2000 N
Locking force FZh	1500 N
Guard locking principle	Open-circuit current principle
