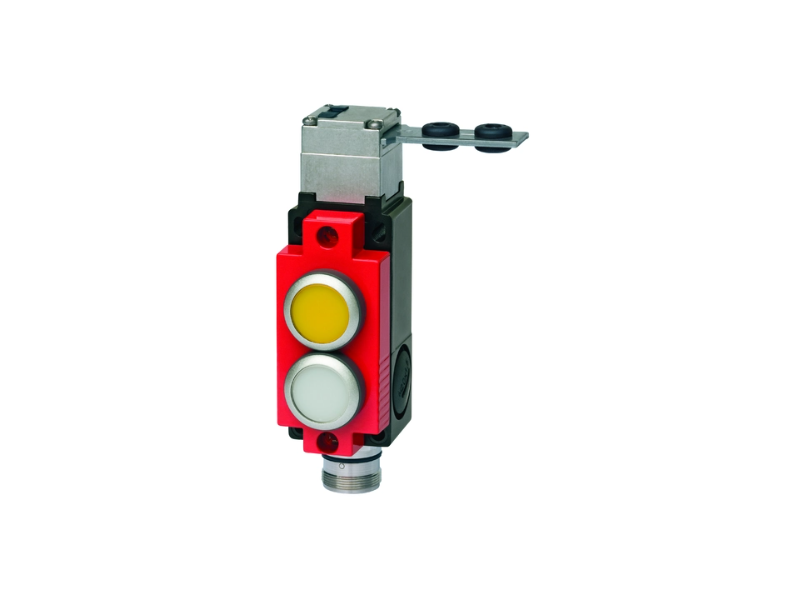

EUCHNER Safety switch SGA2A-2121ARC18-EXT5; 104012
Safety switch SGA, plug connector RC18, 2 illuminated pushbuttons 2 illuminated pushbuttons Plug connector M23 (RC18) Switching disk made of metal...
Price on request
Safety switch SGA, plug connector RC18, 2 illuminated pushbuttons
- 2 illuminated pushbuttons
- Plug connector M23 (RC18)
- Switching disk made of metal
Approvals
Electrical connection values
| Rated insulation voltage Ui | 32 V |
| Rated impulse withstand voltage Uimp | 1.5 kV |
| Utilization category | |
| DC-13 | 1 A 24 V |
| Short circuit protection according to IEC 60269-1 | 1A gG |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 1 A |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Approach direction | A |
| Connection type | |
| 1 x | Plug connector RC18 |
| Number of door position positively driven contacts | 4 |
| Extraction force | 25 N |
| Actuation frequency | max. 6700 1/h |
| Actuating force | 25 N |
| Installation orientation | any |
| Insertion depth | 24.5 mm |
| Mechanical life | 2 x 10⁶ |
| Retention force | 10 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP54 |
| Ambient temperature | -20 ... +80 °C |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Die-cast alloy, cathodically dipped |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| B10D | Mission time | |
|---|---|---|
| Monitoring of the guard position | 3x106 | 20 y |
| Important! Values valid at DC-13 100 mA/24V | ||
Miscellaneous
| Additional feature | |
| 2 x pushbutton | yellow, white (illuminated) |
In combination with actuator ACTUATOR-S-GT-SN
| Overtravel | 5 mm |
