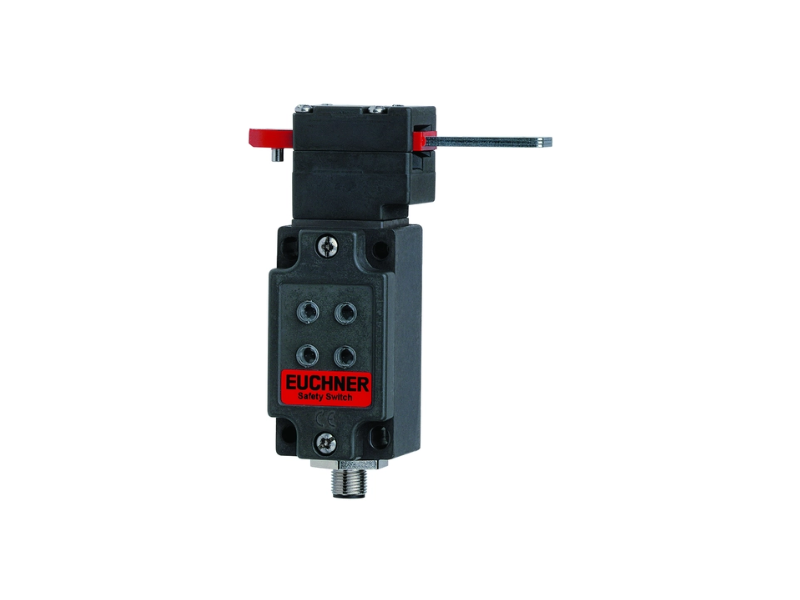

EUCHNER Safety switch NZ2VZ-538ESEM4AS1; 090742
Safety switch NZ.VZ ASi Housing according to EN 50041 Plug connector M12 LED indicator...
Price on request
Safety switch NZ.VZ ASi
- Housing according to EN 50041
- Plug connector M12
- LED indicator
Approvals
Electrical connection values
| ASI operating current | max. 45 mA |
| ASI data in | |
| according to AS-i Safety at Work | D0, D1, D2, D3 |
| ASI data out | |
| LED red | D1 |
| LED green | D2 |
| ASI-LED | |
| LED red | Fault |
| LED green | Power |
| ASI slave type | |
| according to ASI specification 2.1 | EA code: 7 |
| according to ASI specification 2.1 | ID code: B |
| ASI voltage | 22.5 ... 30 ... 31.6 V |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Approach direction | |
| Actuating head left | A |
| Connection type | |
| 1 x | Plug connector M12 |
| Number of door position positively driven contacts | |
| according to AS-i Safety at Work | 2 |
| Extraction force | 35 N |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 35 N |
| Installation orientation | any |
| Insertion depth | 52 mm |
| Mechanical life | 2 x 10⁶ |
| Retention force | 8 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Ambient temperature | -20 ... +55 °C |
| Material | |
| Housing | Anodized die-cast alloy |
| Contact | Silver alloy, gold flashed |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| B10D | Mission time | |
|---|---|---|
| Monitoring of the guard position | 4.5x106 | 20 y |
| Important! Values valid at DC-13 100 mA/24V | ||
In combination with actuator ACTUATOR-Z-GN
| Overtravel | 16 mm |
In combination with actuator ACTUATOR-Z-G
| Overtravel | 4 mm |
