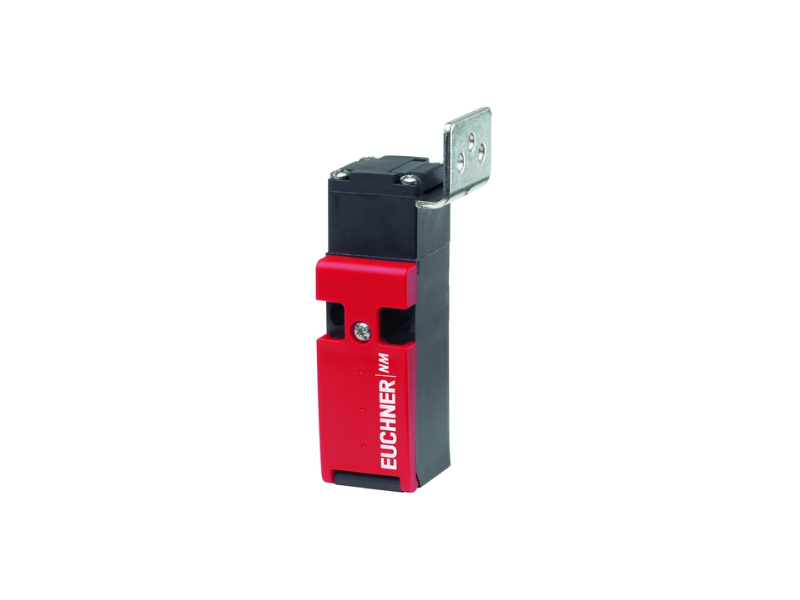

EUCHNER Safety switch NM11VZA-MC2069; 094471
Safety switch NM.VZ, short housing Cable entry M16 x 1.5...
Price on request
Safety switch NM.VZ, short housing
- Cable entry M16 x 1.5
Approvals
Electrical connection values
| Connection cross section | 0.34 ... 1.5 mm² |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category | |
| DC-13 | 4 A 24 V |
| AC-15 | 4 A 230 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 4 A |
Mechanical values and environment
| Approach speed | max. 20 m/min |
| Connection type | |
| 1 x | M16 x 1.5 |
| Number of door position NO contacts | 1 |
| Number of door position positively driven contacts | 1 |
| Extraction force | 10 N |
| Design | short housing |
| Actuation frequency | max. 7000 1/h |
| Actuating force | 10 N |
| Installation orientation | any |
| Insertion depth | 20 mm |
| Mechanical life | 1 x 10⁶ |
| Retention force | 2 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Ambient temperature | -20 ... +80 °C |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Reinforced thermoplastic |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| B10D | Mission time | |
|---|---|---|
| Monitoring of the guard position | 4x106 | 20 y |
In combination with actuator ACTUATOR-M-G
| Overtravel | 4 mm |
