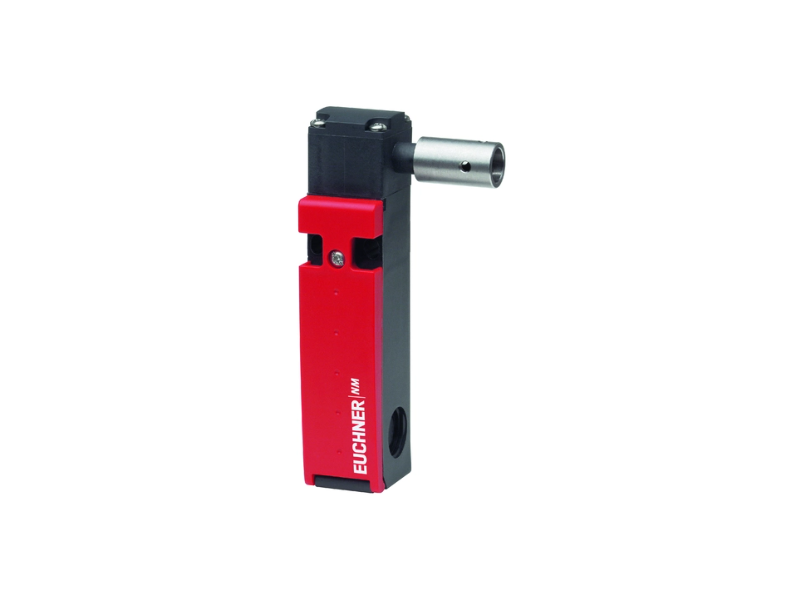

EUCHNER Safety switch NM11AK-M; 084560
Safety switch NM.AK, hinged actuator as hollow shaft, long housing Hinged actuator as hollow shaft Internal diameter 8.2 mm Cable entry M16 x 1.5...
Price on request
Safety switch NM.AK, hinged actuator as hollow shaft, long housing
- Hinged actuator as hollow shaft
- Internal diameter 8.2 mm
- Cable entry M16 x 1.5
Approvals
Electrical connection values
| Connection cross section | 0.34 ... 1.5 mm² |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category | |
| AC-15 | 4 A 230 V |
| DC-13 | 4 A 24 V |
| Short circuit protection according to IEC 60269-1 | 4A gG |
| Switching voltage | |
| min. at 10 mA | 12 V |
| Switching current | |
| min. at 24 V | 1 mA |
| thermal rated current Ith | 4 A |
Mechanical values and environment
| Approach speed | max. 60 m/min |
| Approach direction | Head included |
| Number of door position NO contacts | 1 |
| Number of door position positively driven contacts | 1 |
| Design | long housing |
| Actuating element | |
| Slide bearing plastic | Hinged actuator hollow shaft |
| Actuation frequency | max. 5000 1/h |
| Actuating torque | 0.1 Nm |
| Installation orientation | any |
| Mechanical life | 4 x 10⁶ |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Ambient temperature | -20 ... +80 °C |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Reinforced thermoplastic |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| B10D | Mission time | |
|---|---|---|
| Monitoring of the guard position | 2x107 | 20 y |
