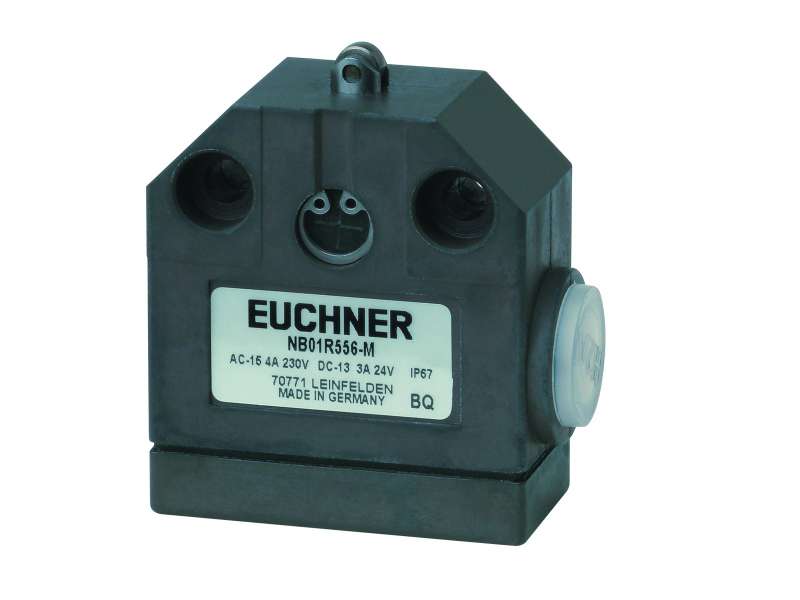

EUCHNER Precision single limit switch NB01R556-M , roller plunger ; 085246
Precision single limit switch NB01R556-M , roller plunger ; 085246 Plunger material stainless steel Cable entry M12 x 1.5...
Price on request
Precision single limit switch NB01R556-M , roller plunger ; 085246
- Plunger material stainless steel
- Cable entry M12 x 1.5
Approvals
Electrical connection values
| Connection cross section | 0.14 ... 1 mm² |
| Rated insulation voltage Ui | 250 V |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Utilization category | |
| AC-15 | 2 A 230 V |
| DC-13 | 2 A 24 V |
| Short circuit protection according to IEC 60269-1 | 6A gG |
| Switching current | |
| min. at DC 24V | 10 mA |
| thermal rated current Ith | 6 A |
Mechanical values and environment
| Approach speed | 0.01 ... 50 m/min |
| Connection type | |
| 1 x | M12 x 1.5 |
| Number of door position NC contacts | 1 |
| Number of door position NO contacts | 1 |
| Tightening torque | |
| Switching element screw terminal | max. 0.2 Nm Hexagon socket AF 1.3 mm |
| Actuating element | |
| Slide bearing metal | Roller plunger |
| Actuating force | 15 ... 20 N |
| Installation orientation | any |
| Mechanical life | 10 x 10⁶ |
| Switching principle | Changeover contact with snap-action function |
| Degree of protection | IP67 |
| Ambient temperature | -5 ... +80 °C |
| Material | |
| Contact | Silver alloy, gold flashed |
| Housing | Anodized die-cast alloy |
