Name: EUCHNER Precision single hole fixing limit switch EGT1/4ASEM4C1802 ; 075644
Brand: EUCHNER
SKU: 075644
Price: 263.95 RSD
Availability: OutOfStock

EUCHNER Precision single hole fixing limit switch EGT1/4ASEM4C1802 ; 075644

Precision single hole fixing limit switch EGT1/4 with reed contact Plunger material stainless steel Any installation orientation For mating connector with LED display...

Brand: EUCHNER
Product Code: 075644
Availability: Check availability

Price on request

Description
Specification

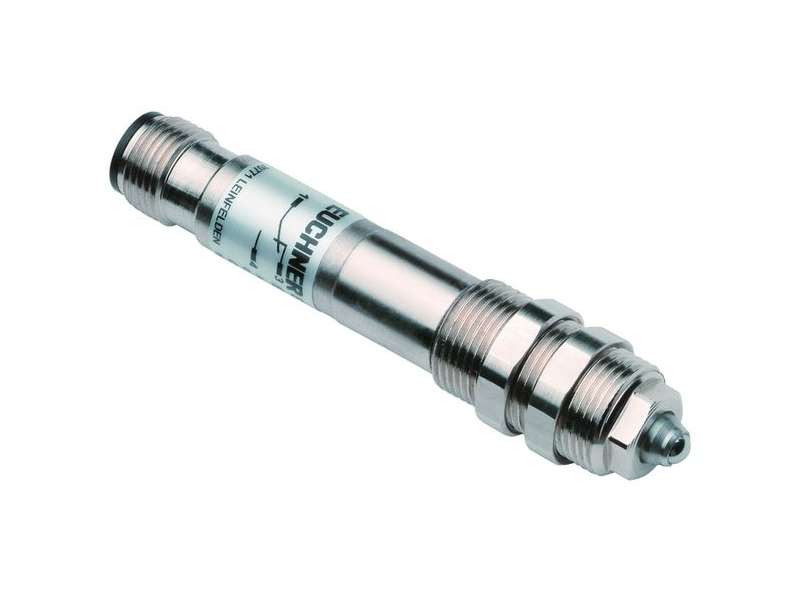

Precision single hole fixing limit switch EGT1/4

with reed contact
Plunger material stainless steel
Any installation orientation
For mating connector with LED display

Switching element

Reed contact, 1 NO contact

Never switch incandescent lamps. Not even for test purposes. Single hole fixing limit switches must not be used as an end stop.

Electrical connection ratings

Rated insulation voltage U_i	50 V
Short circuit protection according to IEC 60269-1	0.4A gG
Switching current
min. at 24 V	1 mA
Switching voltage
min.	1 V
Utilization category
DC-13	0.3A 24V
AC-12	0.3A 30V

Mechanical values and environment

Approach speed	max. 8 m/min
Number of NO contacts	1
Connection	Plug connector M12
Degree of protection	IP67
Design	Thread M14 x 1
Material
Contact	Rhodium
Sleeve	Brass, nickel plated
Threaded section	stainless steel
Actuating element	Ball plunger
Actuating force
approx.	16 N
Mechanical life	30 x 10⁶
Installation orientation	any
Switching principle	Reed contact
Cable ambient temperature (static)	-25 ... +80 °C
Repeat accuracy (absolute)	±0.01 mm
