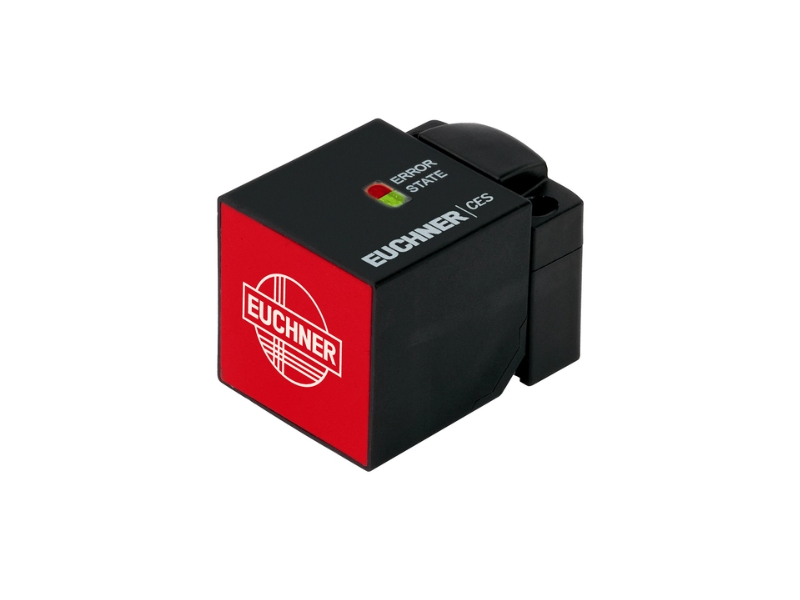

EUCHNER Non-contact safety switch CES-AR-C01-EH-SA; 098582
Non-contact safety switch CES-AR-C01... Safety switch with integrated evaluation electronics Up to 20 switches in series Short circuit monitoring 2 safety outputs...
Price on request
Non-contact safety switch CES-AR-C01...
- Safety switch with integrated evaluation electronics
- Up to 20 switches in series
- Short circuit monitoring
- 2 safety outputs (semiconductor outputs)
- Category 4 / PL e according to EN ISO 13849-1
- Fixcode evaluation (incl. actuator CES-A-BPA)
- Actuator CES-A-BPA included
Approvals
Workspace
| Repeat accuracy R | |
| according to EN 60947-5-2 | <= 10 |
Electrical connection values
| Fuse | |
| external (operating voltage) | 0.25 ... 8 A |
| Rated insulation voltage Ui | 300 V |
| Rated impulse withstand voltage Uimp | 1.5 kV |
| Operating voltage DC | |
| UB | 24 V DC -15% ... +15% reverse polarity protected, regulated, residual ripple<5%, PELV |
| Turn-on time | |
| Safety outputs | max. 400 ms |
| EMC protection requirements | Acc. to EN IEC 60947-5-3 |
| Risk time according to EN 60947-5-3 | max. 260 ms |
| Risk time according to EN 60947-5-3, extension for each additional device | max. 5 ms |
| Safety class | III |
| Current consumption | |
| no load on outputs | max. 50 mA |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Monitoring output OUT | |
| Output type | p-switching, short circuit-proof |
| Output voltage | 0.8 x UB ... UB V DC |
| Switching current | max. 200 mA |
| Safety outputs OA / OB | |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| Output voltage | |
| LOW U(OA,OB) | 0 ... 1 V DC |
| HIGH U(OA,OB) | UB-1.5 ... UB V DC |
| rated conditional short-circuit current | max. 100 A |
| Discrepancy time | max. 10 ms |
| Utilization category | |
| DC-13 | 24 V 400 mA |
| Off-state current Ir | max. 0.25 mA |
| Switching current | |
| per safety output | 1 ... 400 mA |
| Test pulse duration | max. 1 ms |
Mechanical values and environment
| Connection type | M12 plug connector, 8-pin |
| Tightening torque | |
| Fixing screws | max. 1 Nm |
| Ready delay | 10 s |
| Installation orientation | any |
| Switching frequency | max. 1 Hz |
| Mounting distance | min. 40 mm |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP67 |
| Ambient temperature | -20 ... +55 °C |
| Material | |
| Housing | Plastic, PBT |
Miscellaneous
| The following applies to the approval according to UL | Operation only with UL Class 2 power supply or equivalent measures |
Actuator CES-A-BPA-098775 (Order no. 098775)
Workspace
| Actuator distance s | |
| Minimum distance for side approach direction | min. 6 mm |
| Switch-on distance | |
| with center offset m=0 | 22 mm |
| Secured switch-off distance sar | |
| with center offset m=0 | max. 58 mm |
| Secured switching distance sao | |
| with center offset m=0 | min. 18 mm |
| Switching hysteresis | |
| with center offset m=0 | 1 ... 2 mm |
Electrical connection values
| Power supply | Inductive via read head |
Mechanical values and environment
| Tightening torque | |
| Fixing screws | max. 1 Nm |
| Installation orientation | active face opposite read head |
| Degree of protection | IP65/IP67/IP69/IP69K |
| Ambient temperature | -25 ... +70 °C |
| Material | |
| Housing | Plastic (PBT) |
Components included in the set
| Included accessories | 2x safety screws M5x10 |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| PL | Maximum SIL | PFHD | Category | Mission time | |
|---|---|---|---|---|---|
| Monitoring of the guard position | PL e | - | 2.1x10-9 | 4 | 20 y |
In combination with actuator CES-A-BPA-098775
| Switch-on distance | 22 mm |
| Secured switch-off distance sar | max. 58 mm |
| Secured switching distance sao | min. 18 mm |
| Mounting distance |
