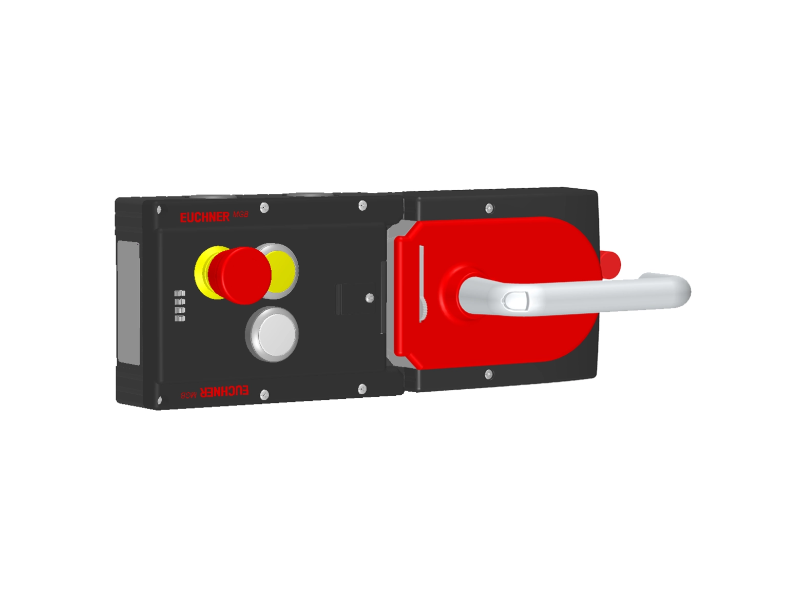

EUCHNER Locking set MGB-L1HE-ARA-R-110220; 110220

EUCHNER Locking set MGB-L1HE-ARA-R-110220; 110220

Locking set MGB-L1HE-ARA..., (guard locking by spring force) with 2 pushbuttons, emergency stop Guard locking with guard lock monitoring Can be connected in series...

Brand: EUCHNER
Product Code: 110220
Availability: Check availability
Price on request

Locking set MGB-L1HE-ARA..., (guard locking by spring force) with 2 pushbuttons, emergency stop

  • Guard locking with guard lock monitoring
  • Can be connected in series with other AR devices (e.g. CES-AR and CET-AR)
  • Emergency stop according to ISO 13850
  • 2 pushbuttons (illuminated, ye, wh)
  • With cable entry
  • With escape release
  • Unicode

Approvals

c_UL_us_E155795_3/9EAC_RU C-DE.HX37.B.14157/20FCC_2AJ58-09_

Handle modules MGB-H-AA1A1-R-100464 (Order no. 100464)

Handle modules MGB-H-AA1A1-R-100464 (Order no. 100464)

Mechanical values and environment

Installation orientation Door hinge DIN right
Degree of protection IP65
Ambient temperature -20 ... +55 °C
Material
Housing Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel

Miscellaneous

Product version number V3.0.0

Escape release MGB-E-A-100465 (Order no. 100465)

Escape release MGB-E-A-100465 (Order no. 100465)

Mechanical values and environment

Installation orientation any
Mechanical life 1 x 10⁶
Ambient temperature -25 ... +55 °C
Material
Housing Die-cast zinc/stainless steel, powder-coated

Miscellaneous

Product version number V2.0.0

Locking modules MGB-L1-ARA-AB8A1-M-110219 (Order no. 110219)

Locking modules MGB-L1-ARA-AB8A1-M-110219 (Order no. 110219)

Operating and display elements

Occupancy diagram L1
Item Extras Color Designation1 Number LED Note slide-in label Slide-in label Version Switching element
1 with monitoring contact             Emergency stop 2 PD + 1 NO
2   Yellow           Illuminated pushbutton 1NO
3   white           Illuminated pushbutton 1NO

Electrical connection values

Similar products:

EUCHNER Locking set MGB-L1H-ARA-R-122236; 122236

EUCHNER Locking set MGB-L1H-ARA-R-122236; 122236

Locking set MGB-L1H-ARA... (guard locking by spring force) with 3 pushbuttons, emergency stop Guard locking with guard lock monitoring Can be connected in series
-
Need to order

(Out of stock)

Price on request

EUCHNER Locking set MGB-L2H-ARA-R-121238; 121238

EUCHNER Locking set MGB-L2H-ARA-R-121238; 121238

Locking set MGB-L2H-AR... (guard locking by solenoid force) with 2 pushbuttons, emergency stop Guard locking with guard lock monitoring Can be connected in series
-
Need to order

(Out of stock)

Price on request

EUCHNER Locking set MGB-L2H-ARA-R-121258; 121258

EUCHNER Locking set MGB-L2H-ARA-R-121258; 121258

Locking set MGB-L2H-ARA... (guard locking by solenoid force) with 2 pushbuttons, emergency stop, incl. label carrier Guard locking with guard lock monitoring Can
-
Need to order

(Out of stock)

Price on request

EUCHNER Locking set MGB-L2HE-ARA-R-121223; 121223

EUCHNER Locking set MGB-L2HE-ARA-R-121223; 121223

Locking set MGB-L2HE-ARA... (guard locking by solenoid force) with 2 pushbuttons, emergency stop Guard locking with guard lock monitoring (switched off) Can be connected
-
Need to order

(Out of stock)

Price on request

EUCHNER Locking module MGB-L1-ARA-AM8A1-M-R-121226; 121226

EUCHNER Locking module MGB-L1-ARA-AM8A1-M-R-121226; 121226

Locking module MGB-L1-ARA... (guard locking by spring force) with 1 pushbutton, key-operated rotary switch, emergency stop Guard locking with guard lock monitoring
-
Need to order

(Out of stock)

Price on request

EUCHNER Locking set MGB-L1H-ARA-R-117229; 117229

EUCHNER Locking set MGB-L1H-ARA-R-117229; 117229

Locking set MGB-L1H-ARA... (guard locking by spring force) with 3 pushbuttons, emergency stop Guard locking with guard lock monitoring Can be connected in series
-
Need to order

(Out of stock)

Price on request

Site map


0.08

ЕЛЕКТРО ПНЕУМАТИК СОЛУШН ДОО СКОПЈЕ

  • ХРИСТО ТАТАРЧЕВ бр.47 К-лок. 4, СКОПЈЕ - КИСЕЛА ВОДА, КИСЕЛА ВОДА, Кисела Вода, Република Северна Македонија
  • Opening Times: Monday - Friday 8am-5pm
  • Telephone:
  • +389 2 2774 523
  • +389 2 2774 523
  • email: sazdev@ep-solutions.mk

linkedin youtube instagram twitter facebook

Uvek smo u potrazi za pravim ljudima.
Otvorene pozicije

© 2025  ЕЛЕКТРО ПНЕУМАТИК СОЛУШН ДОО СКОПЈЕ
1
2
3
Compare products Remove all products
Connection cross section
(rigid/flexible) with cable end sleeve with collar according to DIN 46 228/1 0.25 ... 0.75 mm²
(rigid/flexible) 0.13 ... 1.5 mm²
(rigid/flexible) with cable end sleeve according to DIN 46 228/1 0.25 ... 1.5 mm²
Rated insulation voltage Ui 30 V
Rated impulse withstand voltage Uimp 1.5 kV
Discrepancy time
between FO1A and FO1B max. 10 ms
Utilization category
DC-13 24V 200mA
Risk time according to EN 60947-5-3 max. 350 ms
Risk time according to EN 60947-5-3, extension for each additional device max. 5 ms
Safety class III
Transponder coding Unicode
Degree of contamination (external, according to EN 60947-1) 3
  Solenoid control input IMP1, IMP2, IMM
Test pulse duration max. 5 ms
Test pulse interval min. 100 ms
  Controls and indicators
Breaking capacity max. 0.25 W
Switching voltage UA V
Switching current 1 ... 10 mA
LED power supply 24 V DC
  Emergency stop
Breaking capacity max. 0.25 W
Switching voltage 5 ... 24 V
Switching current 1 ... 100 mA
LED power supply 24 V DC
  Monitoring outputs OD, OT, OL, OI
Output type Semiconductor outputs, p-switching, short circuit-proof
Output voltage UA-2V ... UA V DC
Output current max. 50 mA
  Safety outputs FO1A, FO1B
Output type Semiconductor outputs, p-switching, short circuit-proof
Output voltage
UFO1A /UFO1B LOW 0 ... 1 V DC
UFO1A /UFO1B HIGH UB-2V ... UB V DC
Output current
per safety output FO1A / FO1B 1 ... 200 mA
Test pulse duration max. 1 ms
Test pulse interval min. 100 ms
  Power supply UA
Operating voltage DC
UA 24 V DC -15% ... +10%
Current consumption
IUA max. 375 mA
