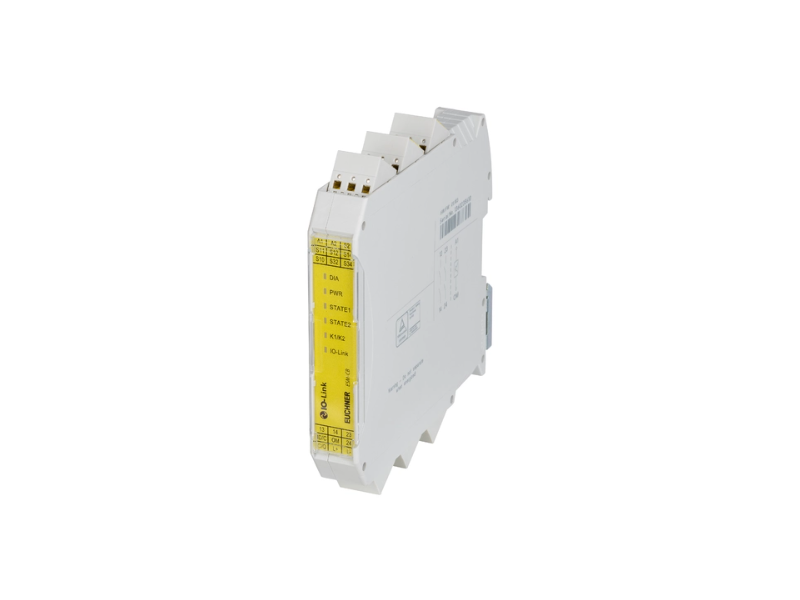

Name: EUCHNER IO-Link Gateway with relay outputs for BP/BR switches ESM-CB-AZ-FI2-BR-IO-158875; 158875
Brand: EUCHNER
SKU: 158875
Availability: OutOfStock

EUCHNER IO-Link Gateway with relay outputs for BP/BR switches ESM-CB-AZ-FI2-BR-IO-158875; 158875

IO-Link Gateway with relay outputs for BP/BR switches IO-Link device for reading process and device data of BP/BR safety switches and transferring them to a higher-level...

Brand: EUCHNER
Product Code: 158875
Availability: Check availability

Price on request

Description
Specification

IO-Link Gateway with relay outputs for BP/BR switches

IO-Link device for reading process and device data of BP/BR safety switches and transferring them to a higher-level control system
Control of guard locking of BP/BR switches, depending on the switch used
Compact version measuring only 18 mm in width
Rail mounting
LED status indicators
Sensor circuit 1: connection of single- or dual-channel safety switches with floating contacts; short circuit, earth fault and ground fault detection
Sensor circuit 2: connection of 2 safety outputs for BP/BR switches
Use as safety relay with two safe outputs
Start button and feedback loop can be connected
Safety relay: use up to category 4 according to EN ISO 13849-1

Approvals

Operating and display elements

LED display

1x operating voltage display PWR, 5x status displays DIA, STATE1, STATE2, K1/K2, IO-Link

Electrical connection values

Power consumption
at 24 V DC	1.44 W
Connection cross section	0.2 ... 1.5 mm²
Rated insulation voltage Ui	320 V
Rated impulse withstand voltage Uimp
Leakage path/air gaps	4 kV
Duty cycle	100 %
Overvoltage category according to IEC EN 60664-1	2
Power dissipation	max. 6.45 W
Degree of contamination (external, according to EN 60947-1)	2

Mechanical values and environment

Stripping length	8 mm
Dimensions	17.5 x 116.5 x 114.5
Connection type	plug-in spring terminals
Type specification	Electromechanical relay with positively driven contacts according to IEC/EN 61810-3 (EN 50205)
Installation orientation	vertical or horizontal
Atmospheric humidity	max. 75 % rH
Mounting type	Mounting rail 35 mm according to DIN EN 60715 TH35
Degree of protection
	IP20
	IP54
Ambient temperature
(operation)	-25 ... +60 °C
Material
Housing	PBT, gray
Contact	AgSnO2
permissible shock and vibration load	10 Hz...150 Hz, 2 g

Characteristic values according to EN ISO 13849-1 and EN IEC 62061

Mission time	20 y
Category
according to EN ISO 13849	4
Performance Level
according to EN ISO 13849
PFD
for IEC 61508 – low demand	3,76 x 10-5
PFHD
for IEC 61508 – high demand	1.00 x 10-9
SIL CL	3
