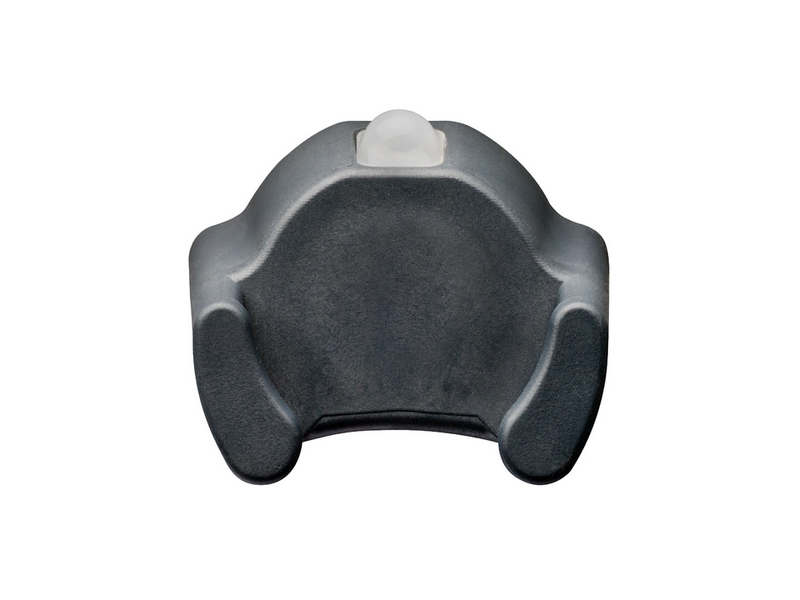

EUCHNER EKS Electronic-Key adapter FHM, with flying lead 3m, EKS-A-SFH-G30-3000 (Order no. 158353)
EKS Electronic-Key adapter FHM, with flying lead 3m, EKS-A-SFH-G30-3000 (Order no. 158353) Small design for installations where there is little space Installation...
Price on request
EKS Electronic-Key adapter FHM, with flying lead 3m, EKS-A-SFH-G30-3000 (Order no. 158353)
- Small design for installations where there is little space
- Installation in standard assembly hole Ø 22.5 mm
- Closed design, rounded contours for hygienic areas
- Plastic with high resistance to media
- IP69K
- Cable 3 m with flying lead
Approvals
Operating and display elements
| LED display | |
| Green | Electronic-Key adapter ready |
| Red | Error |
| Yellow | Key in actuating range |
Mechanical values and environment
| Connection type | Connecting cable 4 x 0.25 mm², screened, flying lead |
| Static bending radius | 5x cable diameter |
| Installation orientation | on the front |
| Cable diameter | 4.6 mm |
| Cable length | 3 m Cable sheath PVC |
| Mounting type | 22.5 |
| Mounting cut-out | D22 (EN IEC 60947-5-1) |
| Degree of protection | |
| in mounted condition (only access side) | IP65/IP67/IP69K |
| Ambient temperature | -20 ... +70 °C |
| Material | |
| Housing | PVDF GF20, gray |
