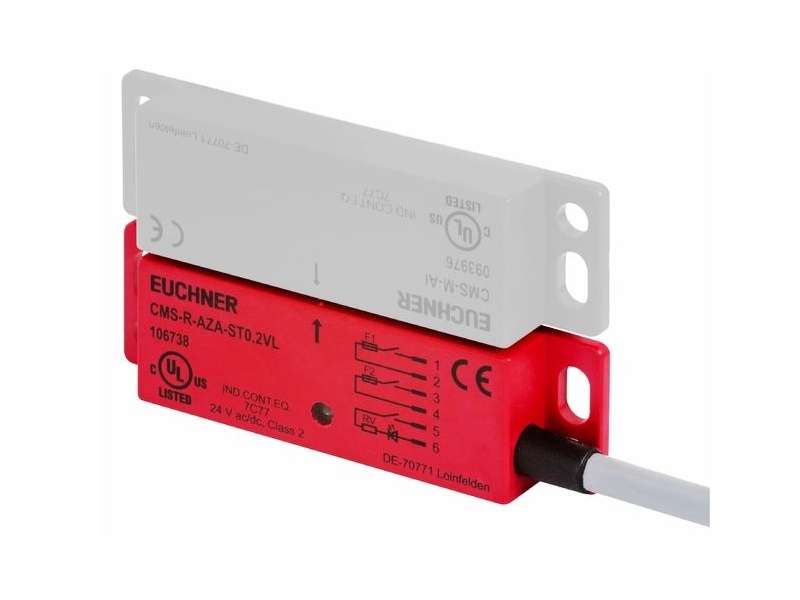

EUCHNER CMS-R-AZA-02VL Read heads, design A, for ESM, PVC; 124191
In combination with evaluation units ESM-BA... Cube-shaped version, 88 x 25 mm Connecting cable 1 LED Cable type: PVC...
Price on request
- In combination with evaluation units ESM-BA...
- Cube-shaped version, 88 x 25 mm
- Connecting cable
- 1 LED
- Cable type: PVC
Approvals
Electrical connection values
| Fuse | |
| Power supply / safety contacts, external contact protection | Fuse 10 A gG |
| rated conditional short-circuit current | 100 A |
| Electrical switching frequency | |
| at I_min = 10 mA | max. 5 Hz |
| At nominal current 8 A | max. 0.1 Hz |
| Switching voltage | |
| DC | 24 ... 35 V |
| Contact status indication DC | 24 ... 35 V |
| Switching voltage according to UL | |
| according to UL Class 2 | max. 24 V AC/DC |
| Switching current | |
| max. 100 mA | |
| Contact status indication | max. 20 mA |
| Switching characteristics | parallel |
| Switching delay from state change | max. 26 ms |
| LED series resistance | |
| LED contact status indication | 1.5 kΩ |
Mechanical values and environment
| Connection type | Hard-wired encapsulated cable with cable end sleeves 0.25 mm2 |
| Number of LED displays | 1 LED contact status indication |
| Number of NO contacts | 2 NO contacts with fuse, 100 mA each, and 1 NO contact with LED |
| Tightening torque | 0.4 ... 0.5 Nm |
| Design | A |
| Installation orientation | any |
| Cable length | 2 m |
| Mechanical life | 100 x 10⁶ |
| Degree of protection | IP67 |
| Ambient temperature | -20 ... +60 °C |
| Material | |
| Cable material | PVC |
| Housing | Fiber glass reinforced PPS |
| Method of operation | magnetic, reed contact |
Characteristic values according to EN ISO 13849-1 and EN IEC 62061
| Monitoring of the guard position | |
| B10D | 20 x 10⁶ |
Miscellaneous
| in compliance with | EN ISO 13849-1: 2015; EN 62061: 2005 + AC: 2010 + A1: 2013 + A2: 2015; EN ISO 14119: 2013; IEC 60947-5-3: 2013 |
| Classification according to EN IEC 60947-5-3 | M3D88AS1 |
In combination with read head ESM-BA201, ESM-BA202, ESM-BA203, ESM-BA301, ESM-BA302, ESM-BA303, ESM-BA201P, ESM-BA301P and actuator CMS-M-AI
| Secured switch-off distance sar | |
| Contact status indication / LED | max. 15 mm |
| max. 20 mm | |
| Secured switching distance sao | |
| with center offset m=0 | min. 9 mm |
| Contact status indication / LED | min. 7 mm |
| Center offset | |
| at s=3 mm read distance | 2.5 mm |
