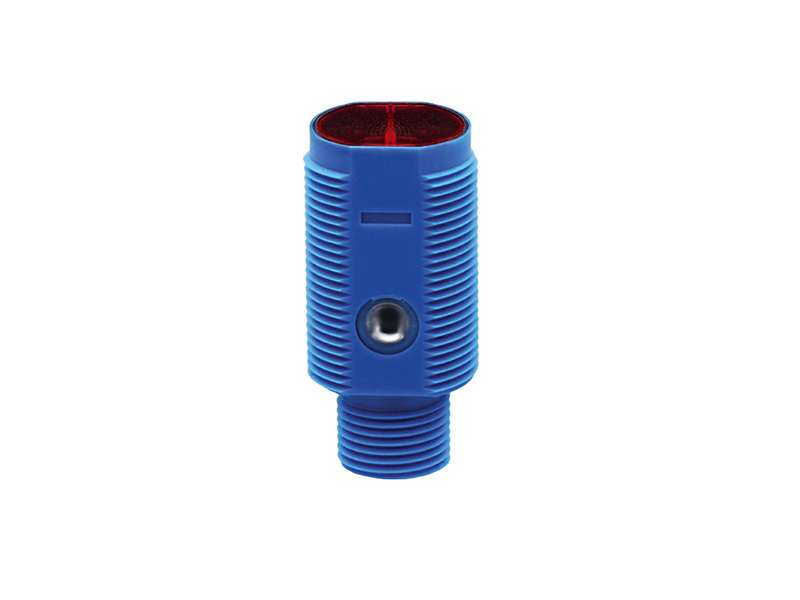

CONTRINEX Standardni fotoelektrični senzor,REFLEX,M18,NPN,LRR-M18PA-NMS-302 ;620-600-191
Standard photoelectric sensor ,background superssion. HousingM18 mm in IP67 protection.NPN polarity and M12 4-pina connection....
VAT-exclusive price: 57,00 € |
VAT-inclusive price: 67,26 € |
Standard photoelectric sensor ,background superssion. HousingM18 mm in IP67 protection.NPN polarity and M12 4-pina connection.
Short Specifications
| Operating principle | Reflex |
|---|---|
| Sensing range typ. Max. | 20...7000 mm |
| Light source | LED, red 630 nm |
| Housing size [mm] | M18 |
| Sensitivity adjustment | No |
| Polarity | NPN |
| Output | Dark-on |
| Interface | Standard output |
| Connection | M12 4-pin |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 1500 |
| Housing material | ABS |
| Temperature range | -25...65 °C |
| Enclosure rating (IP) | IP 67 |
-
LRR-M18PA-NM
