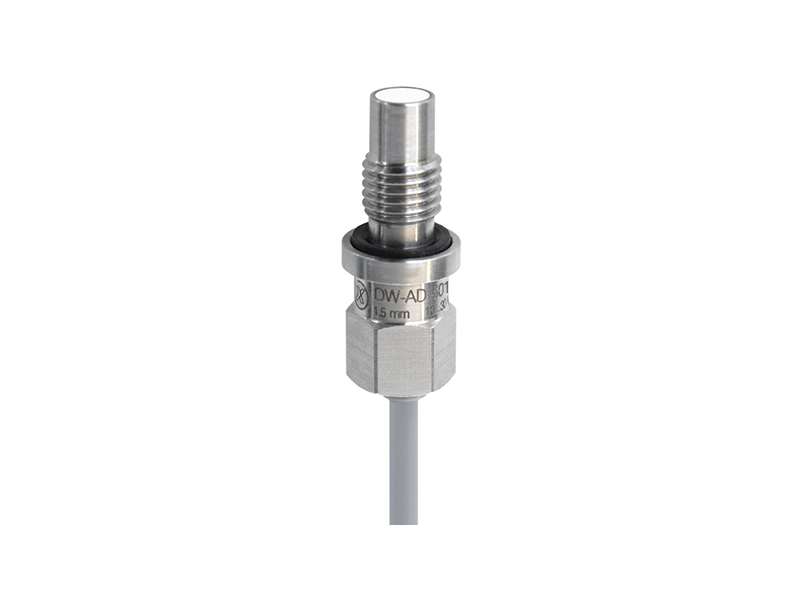

CONTRINEX Induktivni senzor otporan na visoki pritisak, M8, detekciono rastojanje 1,5mm, NPN, NC, DW-AD-502-P8 ;330-020-102
High pressure resistant inductive sensor from Contrinex Extra Pressure series. M8 housing, stainless steel housing material with IP68 protection degree. Connection...
VAT-exclusive price: 217,00 € |
VAT-inclusive price: 256,06 € |
High pressure resistant inductive sensor from Contrinex Extra Pressure series. M8 housing, stainless steel housing material with IP68 protection degree. Connection PUR 2m,3 wire . Standard output ,NPN , NC. Operating distance is1.5mm.
Short Specifications
| Operating distance Sn | 1,5 mm |
|---|---|
| Housing size [mm] | M8 |
| Mounting | Embeddable |
| Polarity | NPN |
| Output | Normally Close(NC) |
| Interface | Standard output |
| Connection | PUR,2m,3wire |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 800 |
| Housing material | Stainless-steel V2A |
| Enclosure rating (IP) | IP 68 |
| Operating pressure [bar] |
≤ 500 bar |
-
DW-Ax-50x-P8
