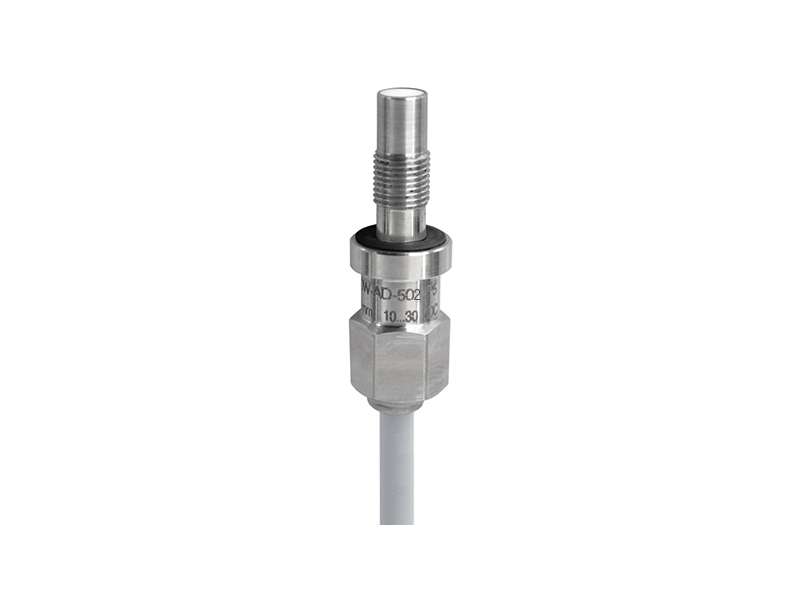

CONTRINEX Induktivni senzor otporan na visoki pritisak, M5, detekciono rastojanje 1mm, PNP, NO, DW-AD-503-P5 ; 330-020-025
High pressure resistant inductive sensor from Contrinex Extra Pressure series. M5 housing, stainless steel housing material with IP68 protection degree. Connection...
VAT-exclusive price: 230,00 € |
VAT-inclusive price: 271,40 € |
High pressure resistant inductive sensor from Contrinex Extra Pressure series. M5 housing, stainless steel housing material with IP68 protection degree. Connection - PUR cable, 2m, 3-wire. Standard output , NPN, NO. Operating distance is 1mm.
Short Specifications
| Operating distance Sn | 1 mm |
|---|---|
| Housing size [mm] | M5 |
| Mounting | Embeddable |
| Polarity | PNP |
| Output | Normally open (NO) |
| Interface | IO-link |
| Connection | PUR, 2 m, 3 wire |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 1000 |
| Housing material | Stainless-steel DIN 2.4711 |
| Enclosure rating (IP) | IP 68 |
| Operating pressure [bar] |
≤ 500 bar |
-
DW-Ax-50x-P5
