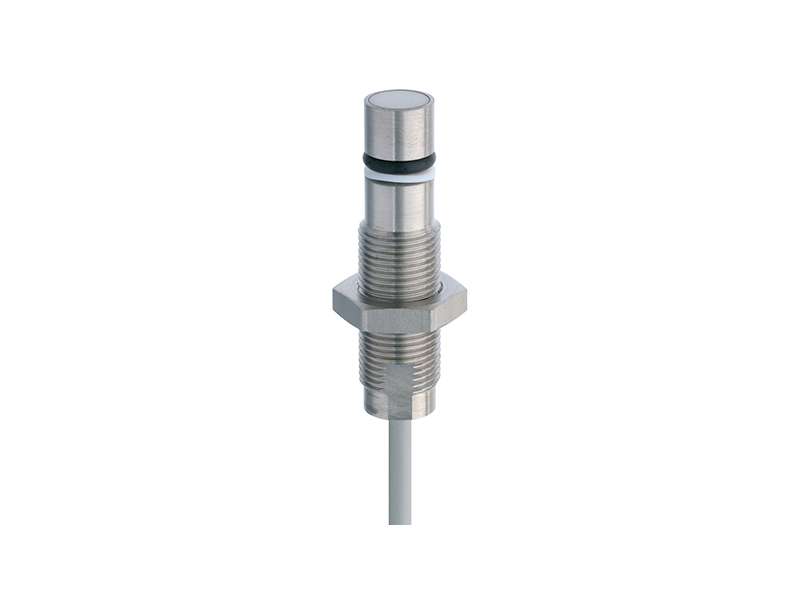

CONTRINEX Induktivni senzor otporan na visoki pritisak, M12, detekciono rastojanje 1,5mm, NPN, NC, DW-AD-502-P12-625 ; 330-020-183
High pressure resistant inductive sensor from Contrinex Extra Pressure series. M12 housing, stainless steel housing material with IP68 protection degree. Connection...
VAT-exclusive price: 182,00 € |
VAT-inclusive price: 214,76 € |
High pressure resistant inductive sensor from Contrinex Extra Pressure series. M12 housing, stainless steel housing material with IP68 protection degree. Connection - PUR cable, 2m, 3-wire. Standard output ,NPN , NC. Operating distance is 1,5mm.
Short Specifications
| Operating distance Sn | 1,5 mm |
|---|---|
| Housing size [mm] | M12 |
| Mounting | Embeddable |
| Polarity | NPN |
| Output | Normally Close (NC) |
| Interface | Standard output |
| Connection | PUR, 2 m, 3 wire |
| Supply voltage | 10...30 VDC |
| Switching frequency max. [Hz] | 600 |
| Housing material | Stainless-steel V2A |
| Enclosure rating (IP) | IP 68 |
| Operating pressure [bar] |
≤ 500 bar |
-
DW-Ax-50x-P12
